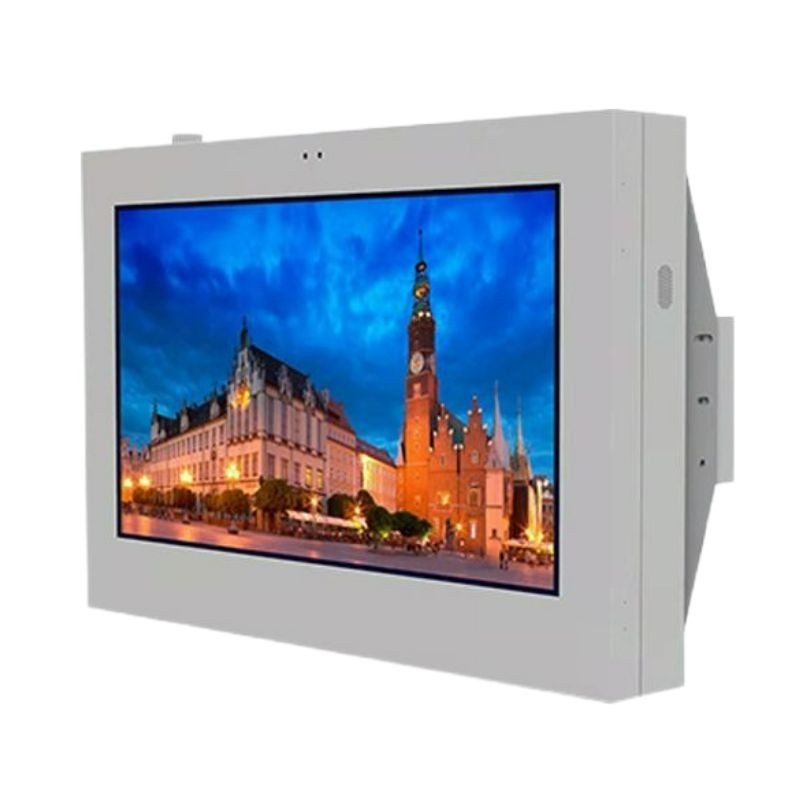

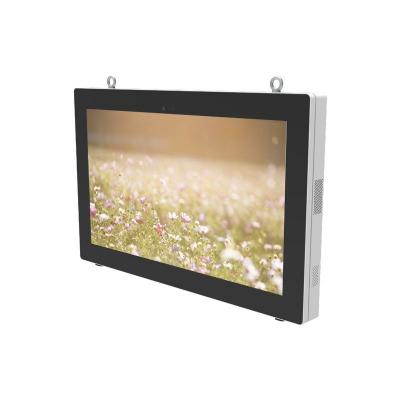

85 inch wall mount outdoor sunlight readable digital signage

Panel size: 85"
Brightness: 700nits
IP grade: Full IP65
Function: advertisement player
Application: outdoor
Material: Metal Case,toughened Glass Panel


1. The shell is made of 1.5mm SGCC galvanized steel plate, sprayed with Akzo outdoor special plastic powder, and the protection period is more than 10 years.

2. FHD,UHD,4K are optional.IPS technology provides better control of the liquid crystals,which in turn allows the screen to be viewed at virtually any angle.

3. Less interference between reflection of external light&back light thanks to anti-reflection coating.

4. Dust & Humidity protection designed with IP55/65 rating.The conformal coating enhance circuit board reliability by protecting it from dust,iron shavings humidity and other harsh conditions.

5. Energy-saving LED backlight(1000-3000 Lumens),Weather-proof,sun-readable, auto-sensor,Anti-dust,anti-thunder,anti-vandalism(Locks&key),anti-radiation,anti-eletromagnetic.

6. Smart brightness control.The auto-brightness sensor and preset time scheduler save power whenever possible.

7. High operating temperature.The panel offers superb reliability under high operating temperatures and reduces cooling fan usage.

8. Enhanced thermal management.Environmentally sealed structure for waterproofing and protecting againsts brake dust and fumes. Three-layer thermal management prevents heating from the lcd,circuit/power board and solar loading. Totally self-contained and suitable for outdoor use without air filter.

9. 6mm AG/AR protective glass. Designed to protect panel from impacts and vandalism for outdoor use. Features OCA*film to protect against heating in direct sunlight.

10. Low power consumption. The panel offer excellent energ efficiency and cost saving and decreases power consumption by approx. 31 compared to conventional RGB panels with same luminance.

11. Support multimedia player, split screen function, optional IR touch, capacitive touch, printer, NFC, camera, etc to meet variety of request from the market.

12. Supporting connecting WIFI,Ethernet,4G(optional) to achieve different internet connection access.

13. Rich size available:32” 43" 49” 55” 65” 75” 86” 98”, support OEM / ODM.


LCD Panel

Panel size


Native   resolution

1920*1080 with 3840*2160   optional

Aspect ratio


Active Area(mm)



700 nits

LED Life Time

≥50K hours

Contrast Ratio   (Center of screen)


Response Time


Viewing angle

89°/89°/89°/89°   (R/L/U/D)

Support Color

16.7M colors

Optional version

Standalone Digital Signage Version

Support picture,music and video to 1080P

Support SD/HDMI/USB inputs

Support SD card plug and play automatically

Usb updated function:update documents by usb drive to sd card

Support connencting with media player box/PC by HDMI input

Playlist function:auto play the designated file at the specific date

Timer function:5 groups timers to turn on/off at the designated time

Slideshow functions to play music and pictures at the same time

Portrait/landscape display mode

Scrolling text with different color and effect


Android Network Display   Version

Andriod 5.1/7.1 operating system optional

RK3188/RK3288/RK3399 optional

IGB/2GB/4GB RAM(DDR3)optional

8GB/16GB/32GB/64GB flash optional

3G(optional)/WLAN/WIFI network connection

802.11B/G/N Internal Wifi

Portrait/landscape display mode

1080P display output

Remote management software (CMS)optional

All-in-one Windows Display   Version

CPU: Intel Celeron Precessor J1900/Intel Core processor I3/I5/I7


System memory:2GB/4GB/8GB RAM,60GB/120GB/240GB SSD

Input connectors: VGA/HDMI/USB/RJ45/Audio

Operating system: Windows 7/8/10,Linux

Preinstall Intel OS service optional

Power Supply

External Power   Supply

AC 100 - 240V , 50-60Hz

Working voltage

DC 12V

Power   consumption




Aluminium alloy face frame,high   strength cold rolled steel back case


Black, white,   Silver , color and dimensions are can be customized

VESA mounting


IP grade

No IP rating,IP65   front optional

Operating   Environment

Temperature   Range

operating: -20   to 70°C, storage: -30 to 80°C

Relative   humidity

operating: 10%   to 80% ,  storage :5% to 90%

Packing Details

Net weight


Gross weight



Power adapter, power cord, USB touch cable, HDMI/ VGA cable



VESA mounting

wall mounting brackets  (optional)

desk stand holder (optional)


1 year warranty



Order   Information

85 inch wall mount outdoor sunlight readable standalone digital signage/ADV85FSSADTGIP01

85 inch wall mount outdoor sunlight readable android network display/ADV85FSAADTGIP0X

85 inch wall mount outdoor sunlight readable all-in-one windows display /ADV85FSWADTGIP0X
