What is a high brightness full IP rating waterproof panel PC – A Complete Guide

A high brightness full IP rating waterproof panel PC is a specialized type of computer system that is designed to operate reliably in harsh environments where exposure to water, moisture, dust, and bright lighting conditions are common. High brightness full IP rating waterproof panel PCs find applications in various industries, including outdoor kiosks, industrial automation, transportation, marine environments, mining, construction, and more. Their ability to provide clear and visible information in bright lighting conditions while being protected against environmental factors makes them essential tools in environments where standard computers would be inadequate or prone to damage.

key features of high brightness sunlight readable full IP rating waterproof panel PC

Waterproof Design: The panel PC is constructed with a sealed and waterproof enclosure that protects internal components from water and moisture intrusion. It typically meets specific Ingress Protection (IP) ratings, indicating the level of protection against solids and liquids. At the same time, its housing should be able to be used for a long time in a wet, water environment, and even an environment with a certain corrosive oil and chemical agents. Usually we choose 304/316 stainless steel or aluminum alloy as its cabinet material.

High Brightness Display: The display of a high brightness panel PC is designed to provide exceptional visibility even in bright outdoor or well-lit indoor environments. It features a high level of brightness, often measured in nits or candelas per square meter (cd/m²), which allows the screen to remain readable in direct sunlight. Therefore, it is usually provided with 1000nits to 2000nits brightness LCD panel according to the intensity of the ambient light.

Rugged Construction: These panel PCs are built to withstand physical impact and harsh conditions. They are often made from durable materials like rugged metals or high-strength plastics to ensure long-term reliability.

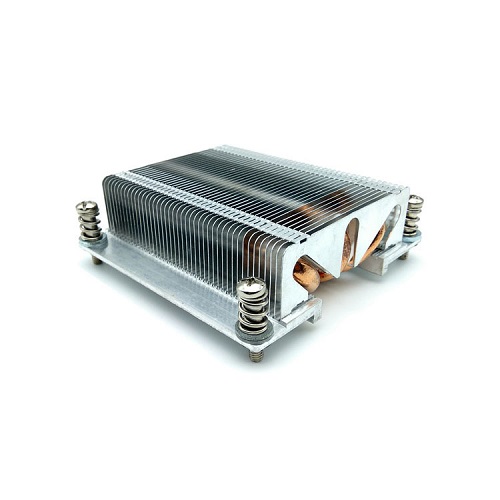

Heat Dissipation: Effective heat dissipation mechanisms, such as heat sinks is integrated into the design to prevent overheating, especially when the device is exposed to high temperatures or direct sunlight. Since the high brightness full IP rating waterproof panel PC must be fully enclosed, its heat dissipation problem is much more difficult than the general panel PC. The ordinary panel PCs can conduct or distribute the heat generated by the CPU and the LCD panel through the built-in radiator or fan, as well as the heat dissipation hole of the body.

Sealing and Gasketing: The panel PC features robust sealing and gasketing at connectors, seams, and openings to maintain its waterproof integrity and prevent the entry of moisture, dust, and debris.

Waterproof Touchscreen Capability: Many high brightness full waterproof panel PCs feature touchscreen functionality, allowing users to interact with the device using touch gestures. This is especially useful in environments where traditional input methods might be impractical. However, for the high brightness full IP rating waterproof panel PCs, it is more critical to ensure that its touchscreen can be used sensitively and accurately in the case of water, oil or other liquids for a long time.

Industrial-Grade Components: The internal components of these panel PCs are typically selected for their durability and suitability for industrial and outdoor environments.

Wide Temperature Range: They are designed to operate within a wide temperature range, ensuring that the device remains functional even in extreme heat or cold.

The main application of high brightness full IP rating waterproof industrial panel PC

High brightness full waterproof industrial panel PCs find application in various industries and environments where a combination of durability, water resistance, and visibility under challenging lighting conditions is essential. Some of the main applications for these specialized panel PCs include:

l  Outdoor Information Displays: These panel PCs are commonly used as outdoor information displays in public spaces, transportation hubs, stadiums, and theme parks. Their high brightness ensures that the information remains visible even in direct sunlight or other bright outdoor lighting conditions.

l  Marine and Offshore Environments: In maritime and offshore settings, where exposure to saltwater and harsh weather is common, high brightness waterproof panel PCs are used for navigation, communication, and monitoring systems on ships, oil rigs, and other marine structures.

l  Industrial Automation: In industrial environments, especially those with high levels of ambient light or direct sunlight, these panel PCs are utilized for process control, machine monitoring, data visualization, and human-machine interaction (HMI) applications.

l  Outdoor Kiosks: High brightness waterproof panel PCs are suitable for outdoor kiosks used for self-service transactions, ticketing, information retrieval, and more. Their visibility ensures that users can interact with the kiosk's interface effectively.

l  Automotive Manufacturing: In automotive manufacturing plants, these panel PCs can be integrated into production lines and quality control processes, allowing operators to monitor and control machinery and processes under varying lighting conditions.

l  Mining and Construction: High brightness waterproof panel PCs find use in mining and construction environments where they can be deployed in heavy machinery and vehicles to provide operators with essential information and control options.

l  Food and Beverage Industry: These panel PCs are employed in food processing and beverage manufacturing facilities, where they can withstand washdown procedures while maintaining high visibility for process monitoring and data recording.

l  Outdoor Surveillance: High brightness waterproof panel PCs are suitable for outdoor surveillance and security applications, enabling monitoring of critical areas in real-time and providing a clear view of video feeds.

l  Medical and Healthcare: In healthcare settings, these panel PCs can be used for electronic medical records, patient monitoring, and medical imaging applications, where they need to be visible even in well-lit medical environments.

l  Transportation: Whether in buses, trains, subways, or airports, high brightness waterproof panel PCs can provide information to passengers, display schedules, and facilitate wayfinding, even in bright and changing lighting conditions.

窗体顶端

What are the key factors that determine the quality of high brightness full IP rating waterproof industrial panel PCs?

High brightness full IP rating waterproof industrial panel PCs need to meet stringent standards to ensure their performance and durability in demanding environments. Evaluating these factors will help ensure that the high brightness full IP rating waterproof industrial panel PC you choose meets your requirements for performance, longevity, and reliability in challenging environments. Here are the key factors that determine the quality of such devices:

IP Rating (Ingress Protection):

The IP rating indicates the level of protection the panel PC offers against solids (first digit) and liquids (second digit). A higher IP rating signifies better protection. For example, IP67 indicates complete dust-tightness and the ability to withstand immersion in water up to 1 meter depth for 30 minutes.

Build and Enclosure Quality:

The quality of the materials used in the construction of the enclosure impacts durability. High-quality metals or rugged plastics provide better resistance to physical impact and environmental stress.

Sealing and Gasketing:

Effective sealing and gasketing around seams, connectors, and openings prevent moisture, dust, and debris from entering the device.

Display Quality:

High-brightness displays should offer good visibility and readability in varying lighting conditions. Factors like brightness, contrast, resolution, and color accuracy are crucial.

Brightness and Backlighting:

High-brightness displays need strong backlighting to combat external lighting conditions. The quality of the backlight system directly affects visibility and performance.

Thermal Management:

Efficient heat dissipation mechanisms, such as heat sinks is essential for stable operation in various temperatures. Effective thermal management prevents overheating and ensures longevity.

EMC (Electromagnetic Compatibility):

Compliance with electromagnetic compatibility standards ensures that the panel PC won't interfere with other electronic equipment and is immune to external interference.

Customization and Versatility:

Quality panel PCs offer customization options to meet specific industry and application needs

Longevity and Reliability:

The durability of components, design, and manufacturing processes contribute to the panel PC's lifespan and reliability.

Touchscreen Technology:

If the panel PC has a touchscreen, the quality of the touchscreen technology is essential for accurate touch input and long-term functionality.

Environmental Testing:

Rigorous testing in conditions like temperature extremes, humidity, and vibration ensures the panel PC's ability to perform reliably in real-world scenarios.

Connectivity and Expansion:

Quality devices provide necessary connectivity options (USB, Ethernet, serial ports, etc.) and expansion slots to accommodate various peripherals.
