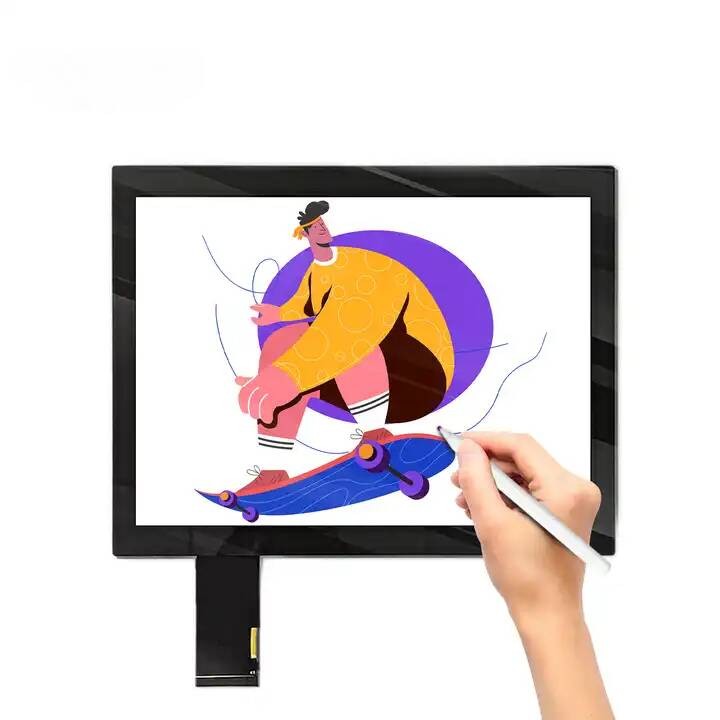

10.4 high brightness lcd touchscreen optical bonding with AG AR AF coating capacitive touchscreen

10.4 high brightness lcd touchscreen optical bonding with AG AR AF coating capacitive touchscreen

Panel size：10.4"
Resolution：1024*768
Surface Treatment：PCAP touch with optical binding
Interface：HDMI/DVI/VGA
Brightness：1000nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision's customized touch screen LCD kits provides the perfect solution for customers to design and produce a variety of smart devices. We provide touch screen lcd kits covering a variety of sizes, from 5.7” to 86”. Tempered glass, capacitive touch screen, resistive touch screen, infrared touch screen can be flexible choice for customers. The brightness of the LCD panels in the kits can be customized according to the needs of customers, from normal brightness to sunlight readable high brightness. Optical binding, as well as AG, AR, AF layer technology can be applied to our touch screen kits as required by customers. Strong supply chain integration gives us the ability to quickly provide our customers with a variety of special customized touch LCD kits.

FEATURES

1, 10.4inch industrial grade LCD panels with 1024*768 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

3, High performance AD board with DVI/VGA/HDMI/DP optional, 7x24 continuous operation.

4, 1000-1500nits high brightness LCD optional for outdoor use.

5, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

6, Phoenix terminal 9-36V wide voltage input optional.

7, Optical binding, AG, AR, AF coating for tempered glass and capacitive touchscreen optional

8, Application: Military, Tablet, Ruggedized PC, Kiosk, Advertising, POS, Marine, Transportation.. etc

SPECIFICATION

LCD Panel
Panel size	10.4”
Native resolution	1024*768
Aspect ratio	4:3
Active Area(mm)	132.48(H) × 99.36(V)
Brightness	1000-1500 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	3s
Viewing angle	80°/80°/70°/70° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch interface	USB (RS232 optional)
Touch response time	2ms
Working Life	>50 million times
Touch options	(5 wires restive touch, IR touch optional)
Signal Ports
VGA	1×VGA
DVI	1×DVI
HDMI	1×HDMI
Audio in/out, DP	optional
OSD
OSD control	Brightness, contrast ratio, auto adjustment, H/V position, language select etc.
Support languages	English, French, Spanish, Portuguese, Italian, German, Russian, Japanese, Chinese etc.
Support OS	Windows XP , Windows /7/8/10/11 ,Linux, Mac OS X, Android ect.
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working voltage	DC 12V
Power consumption	≤15W
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative humidity	operating: 10% to 80% , storage :5% to 90%
Packing Details
Net weight	0.8 kg (Approx.)
Gross weight	1.1 kg (Approx.)

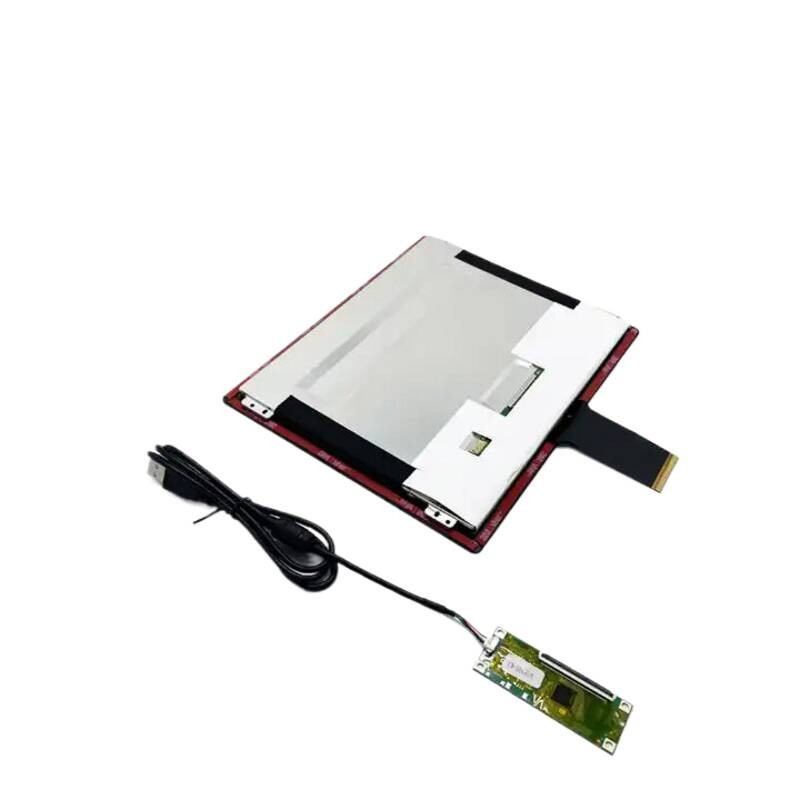

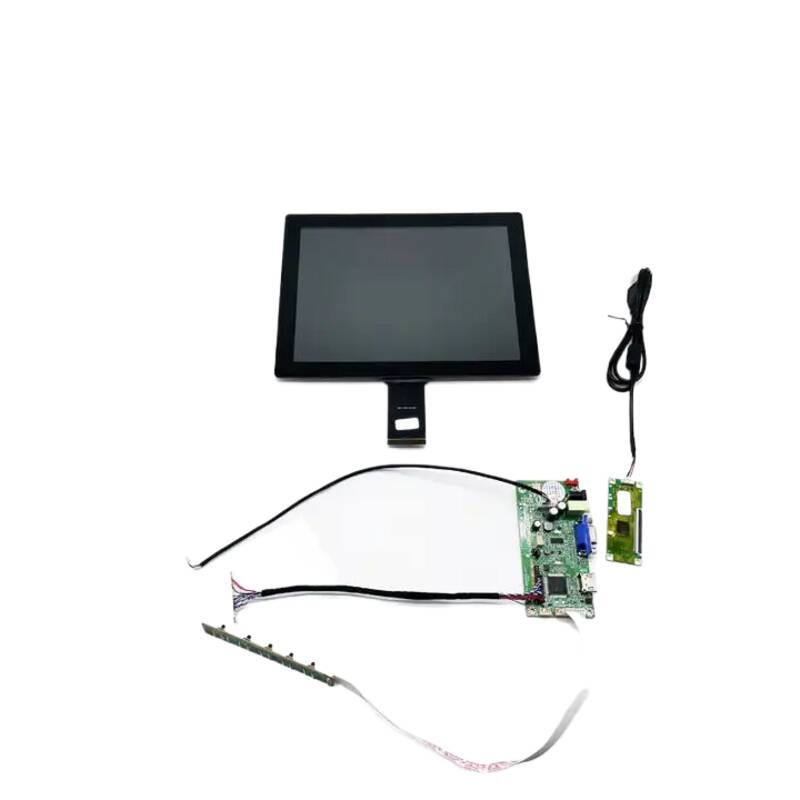

Accessories	LCD panel, touch panel, AD board, LVDS cable, Power adapter, USB touch cable, HDMI/ VGA cable
Other
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
10.4inch LCD kits without touch screen/ADV10KTNT01
10.4inch LCD kits with tempered glass optical binding/ADV10KTTG01
10.4inch touch screen lcd kits with resistive touch/ADV10KTRT01
10.4inch touch screen lcd kits with capacitive touch optical binding/ADV10KTCT01
