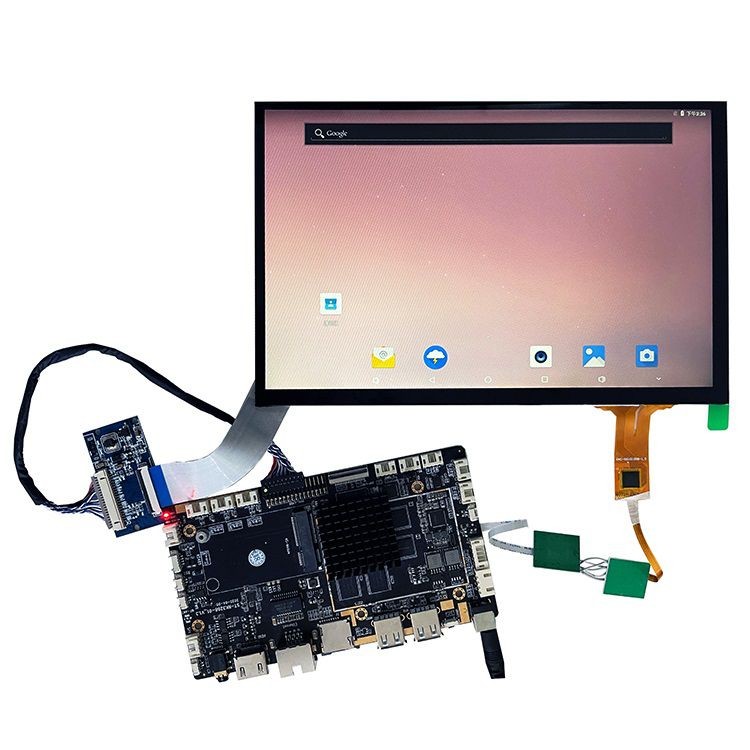

10.1 inch high brightness touch lcd kits with android board

Panel size：10.1"
Resolution：1280*800 or 1920*1080
Surface Treatment：PCAP touch with optical binding
Brightness：1000nits
Touch Type：Capacitive
IP grade：No IP Rating

OVERVIEW

Advanvision's customized touch screen LCD kits provides the perfect solution for customers to design and produce a variety of smart devices. We provide touch screen lcd kits covering a variety of sizes, from 5.7” to 86”. Tempered glass, capacitive touch screen, resistive touch screen, infrared touch screen can be flexible choice for customers. The brightness of the LCD panels in the kits can be customized according to the needs of customers, from normal brightness to sunlight readable high brightness. Optical binding, as well as AG, AR, AF layer technology can be applied to our touch screen kits as required by customers. Strong supply chain integration gives us the ability to quickly provide our customers with a variety of special customized touch LCD kits.

FEATURES

1, 10.1inch industrial grade LCD panels with 1280*800 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

3, High performance RK3288/RK3399 Android board with 7x24 continuous operation.

4, 1000-1500nits high brightness LCD optional for outdoor use.

5, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

6, Phoenix terminal 9-36V wide voltage input optional.

7, Optical binding, AG, AR, AF coating for tempered glass and capacitive touchscreen optional

8, Application: Military, Tablet, Ruggedized PC, Kiosk, Advertising, POS, Marine, Transportation.. etc

SPECIFICATION

PC
CPU	ARM Quad Core RK3288 Cortex-A17, Main CPU frequency:1.8GHz
CPU Optional	RK3399, RK3368 Optional
GPU	Mali-T764 GPU
SDRAM	2G (4G, 8G optional)
Flash	8G: 16G/32G/64G/128G Optional
Bluetooth	Optional
Video Decoder	4K VP8 and 4K 10bits H265/H264 1080P other video decoders (VC-1, MPEG-1/2/4, VP8)
Media Format	Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc
Music Format	Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC
Network Support	Ethernet,Wifi/bluetooth 4.0,wireless peripherals,etc
I/O Interface	1 × HDMI; 2 × USB Max. 6× USB; 1 × TF Card Support 8~128GB; 1 × DC 12V 2.0; 3G/4G Optional; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); Com Port optional
Operation System	Android 6.0/7.1/8.0
LCD Panel
Panel size	10.1”
Native Resolution	1280800 with 19201200 optional
Aspect ratio	16:10
Brightness	1000-1200 nits
LED Life Time	≥50K hours
Contrast Ratio (Center of screen)	500:1
Response Time	8ms
Viewing Angle	80°/80°/80°/80° (R/L/U/D)
Support Color	16.7M colors
Touch
Touchscreen Type	Project Capacitive Touch (10 points)
Surface Hardness	3H
Luminousness	90%
Touch Interface	USB (RS232 optional)
Touch Response Time	2ms
Working Life	>50 million times
Touch Options	(5 wires restive touch,IR touch optional)
Power Supply
External Power Supply	AC 100 - 240V , 50-60Hz
Working Voltage	DC 12V
Power Consumption	≤25W
IP Grade	No
Operating Environment
Temperature Range	operating: -20 to 70°C, storage: -30 to 80°C
Relative Humidity	5%~95% @ 40° C, non-condensing
Vibration	5-500 Hz, 0.026 G²/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
Packing Details
Net Weight	0.8 kg (Approx.)
Gross Weight	1.0 kg (Approx.)
Accessories	Power adapter, embedded screws, user manual, warranty card
Other
Warranty	1 year warranty
Certificates	CE, FCC, RoHS
Order Information
10.1 inch non touch high brightness lcd kits with android board RK3288/ADV101NKTRK3288
10.1 inch capacitive touch high brightness lcd kits with android board RK3288/ADV101CKTRK3288
10.1 inch resistive touch high brightness lcd kits with android board RK3288/ADV101RKTRK3288
