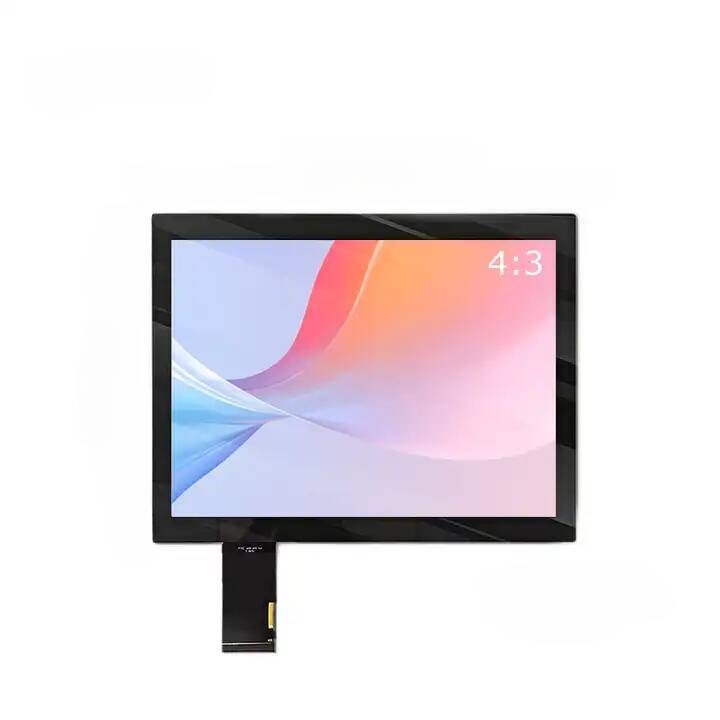

12.1 inch capacitive touchscreen with optical bonding and cover glass with AG AR AF coating

Panel size:12.1"
Resolution:1024*768 or 800*600
Surface Treatment:PCAP touch with optical binding
Interface:HDMI/DVI/VGA
Brightness:1000nits-1500nits
Touch Type:Capacitive
IP grade:No IP Rating

OVERVIEW

Advanvision's customized touch screen LCD kits provides the perfect solution for customers to design and produce a variety of smart devices. We provide touch screen lcd kits covering a variety of sizes, from 5.7” to 86”. Tempered glass, capacitive touch screen, resistive touch screen, infrared touch screen can be flexible choice for customers. The brightness of the LCD panels in the kits can be customized according to the needs of customers, from normal brightness to sunlight readable high brightness. Optical binding, as well as AG, AR, AF layer technology can be applied to our touch screen kits as required by customers. Strong supply chain integration gives us the ability to quickly provide our customers with a variety of special customized touch LCD kits.





FEATURES

1, 12.1 inch industrial grade LCD panels with 1024*768 resolution, wide viewing angle.

2, Resistive or capacitive touch screen, IR touch screen, Saw touch optional.

3, High performance AD board with DVI/VGA/HDMI/DP optional, 7x24 continuous operation.

4, 1000-1500nits high brightness LCD optional for outdoor use.

5, Wide temperature range: operating: -20 to 70°C, storage: -30 to 80°C.

6, Phoenix terminal 9-36V wide voltage input optional.

7, Optical binding, AG, AR, AF coating for tempered glass and capacitive touchscreen optional

8, Application: Military, Tablet, Ruggedized PC, Kiosk, Advertising, POS, Marine, Transportation.. etc




SPECIFICATION

LCD Panel

Panel size

12.1”

Native resolution

1024*768

Aspect ratio

4:3

Active Area(mm)

246.00(H) × 184.50(V)

Brightness

1000-1500 nits

LED Life Time

≥50K hours

Contrast Ratio (Center of   screen)

500:1

Response Time

3s

Viewing angle

80°/80°/60°/70° (R/L/U/D)

Support Color

16.7M colors

Touch

Touchscreen type

Project Capacitive Touch (10   points)

Surface Hardness

3H

Luminousness

90%

Touch interface

USB (RS232 optional)

Touch response time

2ms

Working Life

>50 million times

Touch options

(5 wires restive touch, IR   touch optional)

Signal   Ports

VGA

1×VGA

DVI

1×DVI

HDMI

1×HDMI

Audio in/out, DP

optional

OSD

OSD control

Brightness, contrast ratio,   auto adjustment, H/V position, language select etc.

Support languages

English, French, Spanish,   Portuguese, Italian, German, Russian, Japanese, Chinese etc.

Support OS

Windows XP , Windows /7/8/10/11   ,Linux, Mac OS X, Android ect.

Power   Supply

External Power Supply

AC 100 - 240V , 50-60Hz

Working voltage

DC 12V

Power consumption

≤15W

Operating   Environment


Temperature Range

operating: -20 to 70°C,   storage: -30 to 80°C

Relative humidity

operating: 10% to 80% ,    storage :5% to 90%

Packing   Details


Net weight

0.8 kg (Approx.)

Gross weight

1.1 kg (Approx.)

Accessories

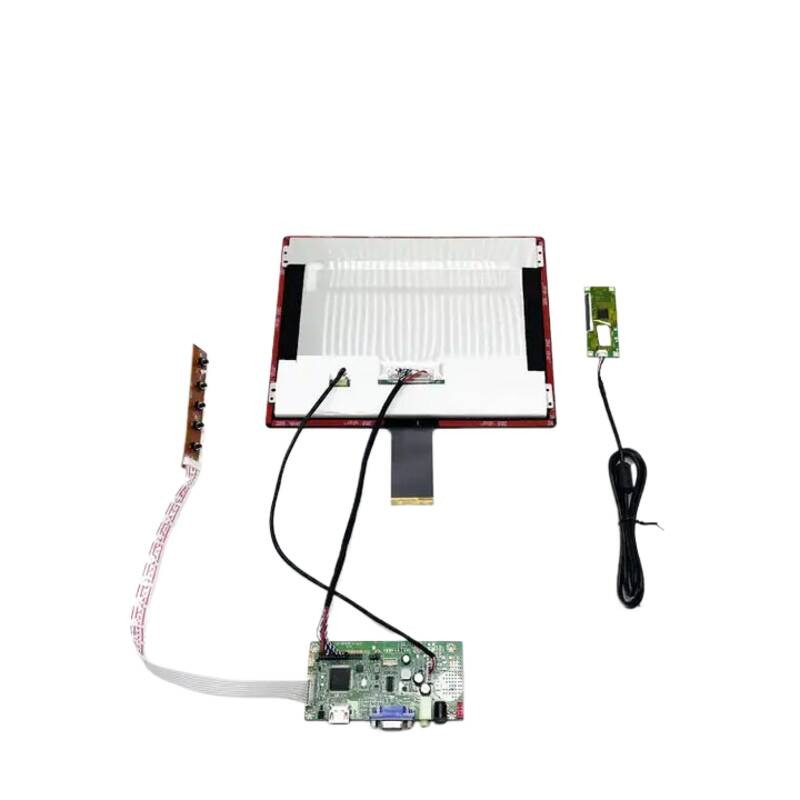

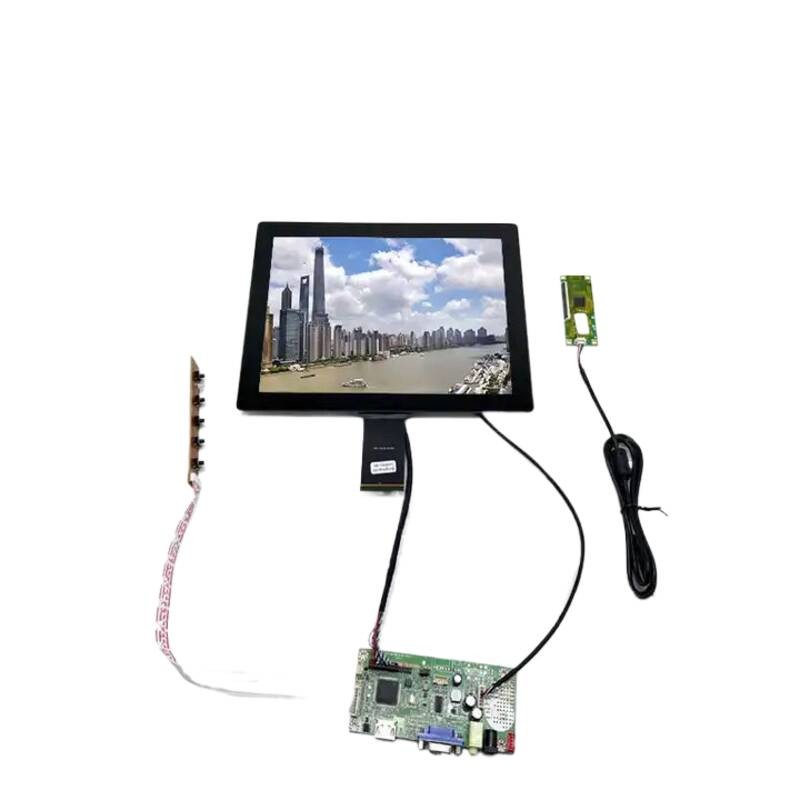

LCD panel, touch panel, AD   board, LVDS cable, Power adapter, USB touch cable, HDMI/ VGA cable

Other


Warranty

1 year warranty

Certificates

CE, FCC, RoHS

Order   Information


12.1inch LCD kits without touch screen/ADV12KTNT01

12.1inch LCD kits with tempered glass optical binding/ADV12KTTG01

12.1inch touch screen lcd kits with resistive touch/ADV12KTRT01

12.1inch touch screen lcd kits with capacitive touch optical binding/ADV12KTCT01
